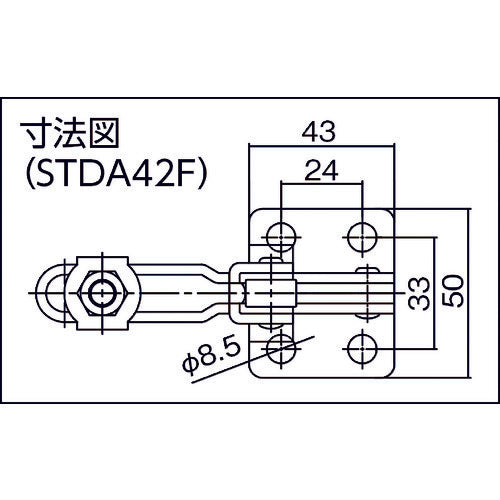

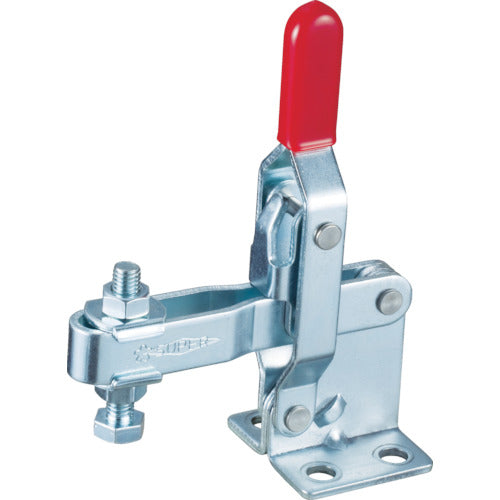

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 140mm Clamping Force: 2kN Flange Base Stainless Steel (SUS304) STDA42F 1 pc

Catalog number: STDA42F Features: ●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ●Total length (mm): 140 ●Attached bolt diameter: M8 x 50 ●Clamp arm movement angle (°): 94 ●Handle operation angle (°): 45 ●Tightening force (kN): 2.0 ●Tightening force (kN): 2 ●Downward pressure type ●Vertical handle ●Flange base Material/Finish: ●Stainless steel (SUS304) Set contents/Accessories: ●Clamp bolt: STNN0850 ●Washer: STFW082 Note: ●The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
