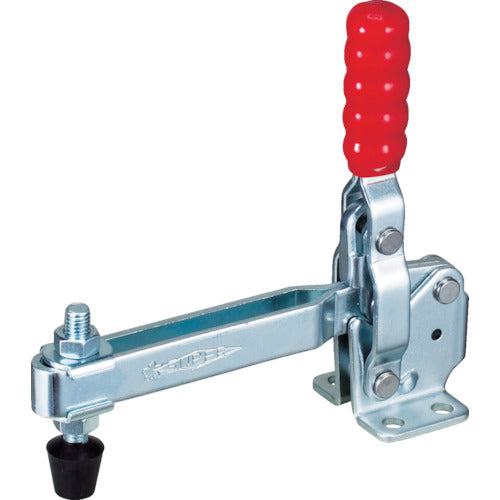

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 143mm Clamping Force: 2.27kN Flange Base TDV450FL 1 pc

Catalog number: TDV450FL Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 143 ● Clamping force (kN): 2.27 ● Attached bolt diameter: M8 x 63 ● Clamp arm movement angle (°): 100 ● Handle operation angle (°): 60 ● Clamping force (kN): 2.27 ● Downward pressure type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNG0863 ● Washer: TFW081 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
