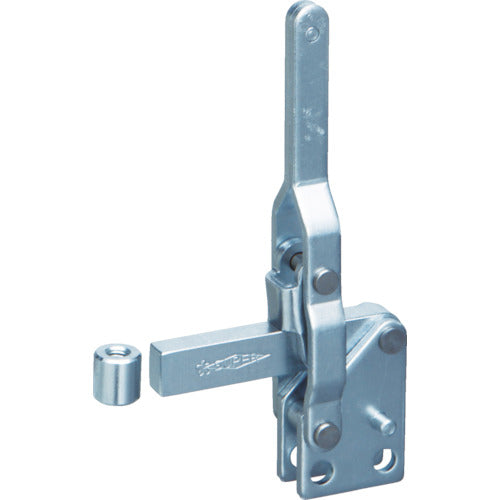

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 174mm Clamping Force: 1.5kN TD35S 1 pc

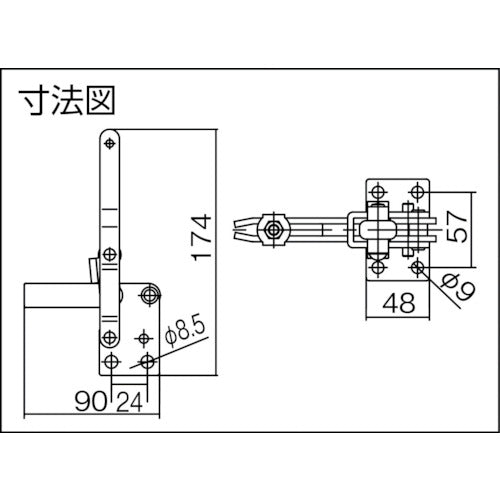

Catalog number: TD35S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. ● Please weld a round nut to the end of the clamp arm before use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 174 ● Clamping force (kN): 1.5 ● Clamp arm movement angle (°): 128 ● Handle operation angle (°): 66 ● Attached nut diameter: M8 x 1.25 ● Product marking: TD35S ● Clamping force (kN): 1.5 ● Downward pressing type ● Vertical handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Round nut: TNC08 Note: ● Round nut is not attached.
