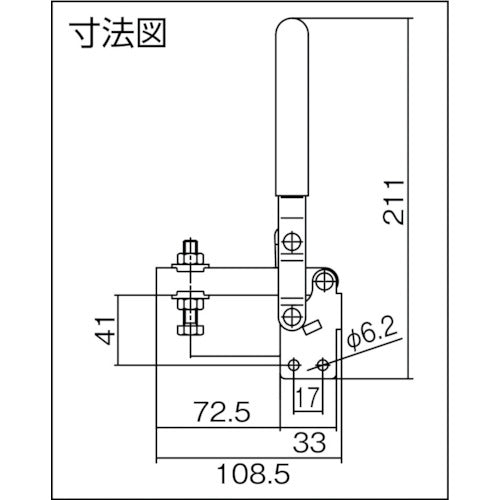

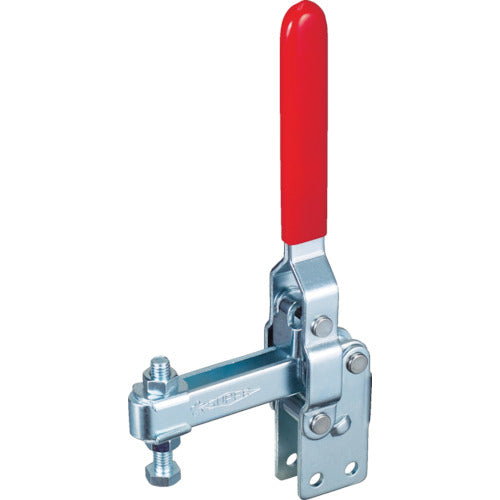

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 211mm Clamping Force: 2kN TDBS41S 1 pc

Catalog number: TDBS41S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 211 ● Clamping force (kN): 2.0 ● Attached bolt diameter: M8 x 50 ● Clamp arm movement angle (°): 110 ● Handle operation angle (°): 64 ● Clamping force (kN): 2.0 ● Clamping force (kN): 2 ● Downward pressure type ● Vertical handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt nut: TNN0850 ● Washer: TFW081 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
