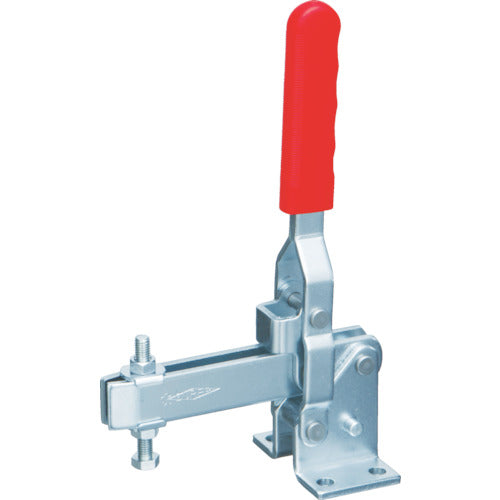

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 251mm Clamping Force: 2kN TDX12F 1 pc

Catalog number: TDX12F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 251 ● Attached bolt diameter: M8 x 65 ● Clamp arm movement angle (°): 112 ● Handle operation angle (°): 62 ● Product marking: TDX12F ● Clamping force (kN): 2.0 ● Clamping force (kN): 2 ● Downward pressing type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0865 ● Washer: TFW082
