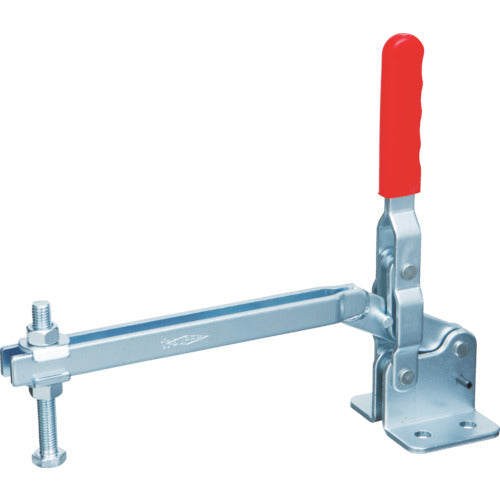

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 270mm Clamping Force: 3.7kN TDJB2F 1 pc

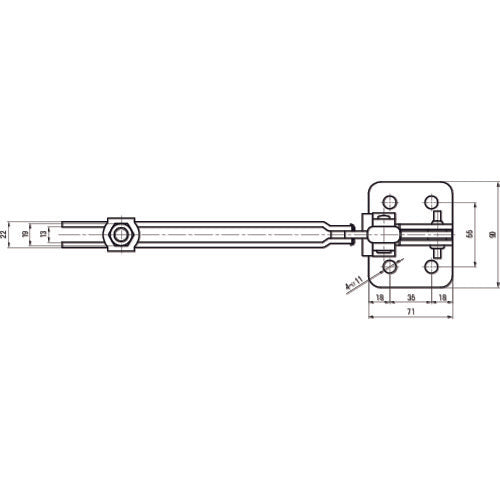

Catalog number: TDJB2F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 270 ● Clamping force (kN): 3.7 ● Attached bolt diameter: M12 x 100 ● Clamp arm movement angle (°): 114 ● Handle operation angle (°): 90 ● Product marking: TDJB2F ● Clamping force (kN): 3.7 ● Downward pressing type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN12100 ● Washer: TFW121
