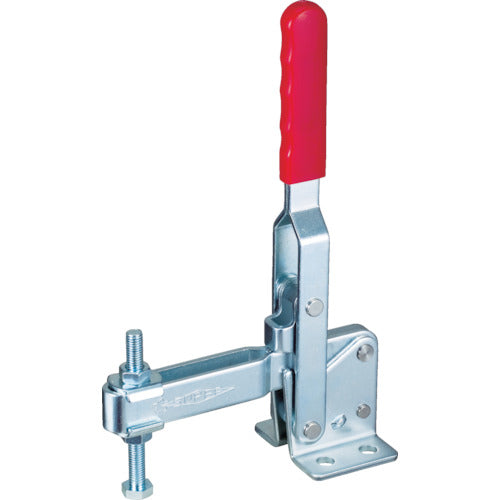

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 287mm Clamping Force: 3kN TDBM41F 1 pc

Catalog number: TDBM41F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 287 ● Attached bolt diameter: M10 x 100 ● Clamp arm movement angle (°): 115 ● Handle operation angle (°): 64 ● Clamping force (kN): 3.0 ● Clamping force (kN): 3 ● Downward pressure type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN10100 ● Washer: TFW103 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
