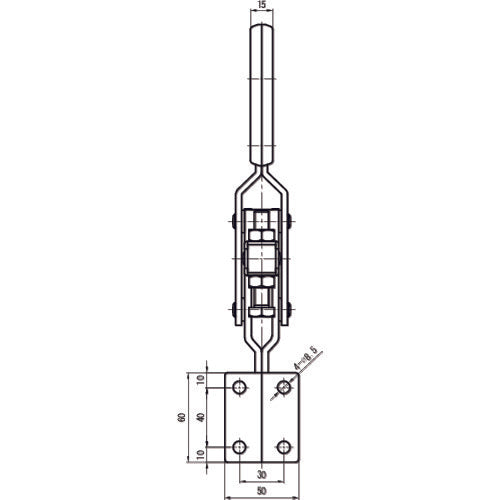

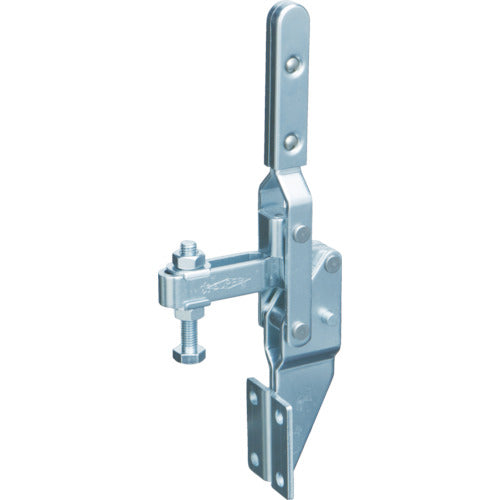

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 294mm Clamping Force: 3kN TDF41F 1 pc

Catalog number: TDF41F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 293 ● Clamping force (kN): 3.0 ● Attached bolt diameter: M10 x 65 ● Clamp arm movement angle (°): 108 ● Handle operation angle (°): 52 ● Product marking: TDF41F ● Clamping force (kN): 3.0 ● Clamping force (kN): 3 ● Downward pressing type ● Vertical handle ● Side mounting flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN1065 ● Washer: TFW102
