Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 310mm Clamping Force: 5kN TD34S 1 pc

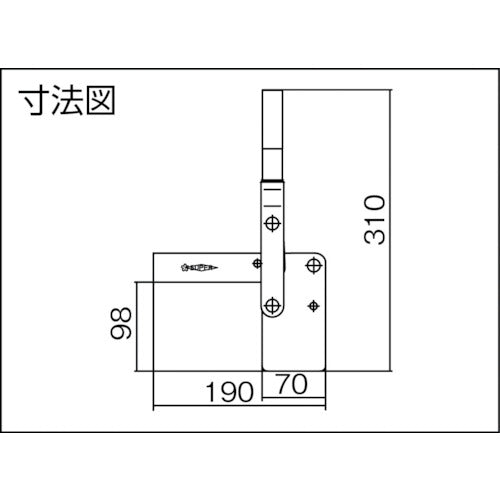

Catalog number: TD34S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. ● Please weld a collar to the end of the clamp arm before use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 310 ● Clamping force (kN): 5.0 ● Attached bolt diameter: M12 x 75 ● Clamp arm movement angle (°): 128 ● Handle operation angle (°): 68 ● Product marking: TD34S ● Clamping force (kN): 5.0 ● Clamping force (kN): 5 ● Downward pressing type ● Vertical handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt round nut collar set: TNNC12S Note: ● Round nuts are not attached.
