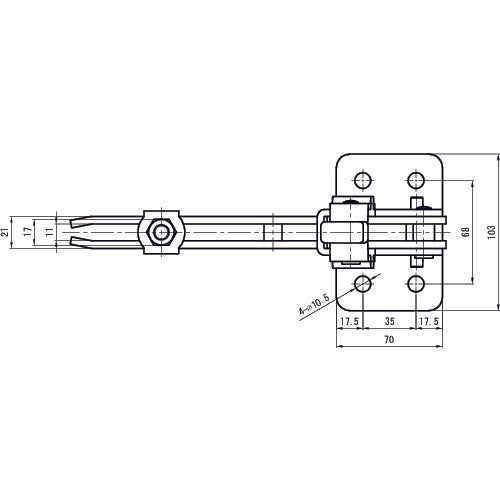

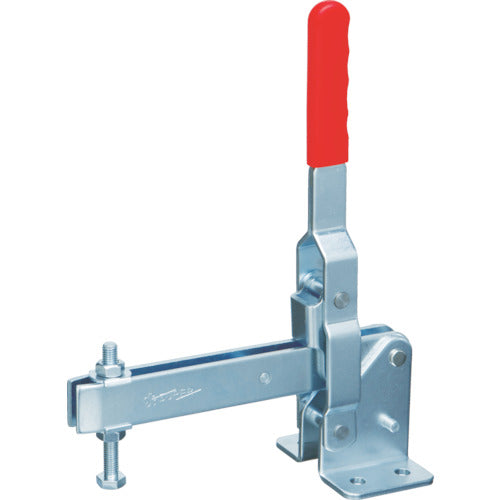

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 320mm Clamping Force: 3.5kN TDX14F 1 pc

Catalog number: TDX14F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 320 ● Clamping force (kN): 3.5 ● Attached bolt diameter: M10 x 90 ● Clamp arm movement angle (°): 124 ● Handle operation angle (°): 69 ● Product marking: TDX14F ● Clamping force (kN): 3.5 ● Downward pressing type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN1090 ● Washer: TFW103
