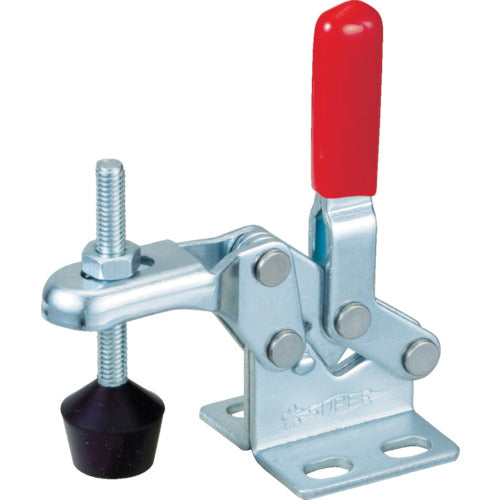

Super Downward Presser Toggle Clamp (Vertical Handle Type) Overall Length: 61mm Clamping Force: 0.3kN Flange Base Stainless Steel (SUS304) STD09F 1 pc

Catalog number: STD09F Features: ●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ●Total length (mm): 61 ●Tightening force (kN): 0.3 ●Attached bolt diameter: M4 x 42 ●Clamp arm movement angle (°): 80 ●Handle operation angle (°): 88 ●Tightening force (kN): 0.3 ●Downward pressure type ●Vertical handle ●Flange base Material/Finish: ●Stainless steel (SUS304) ●Screw tip rubber: Nitrile rubber Set contents/Accessories: ●Clamp bolt: STNG0442 Note: ●The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
