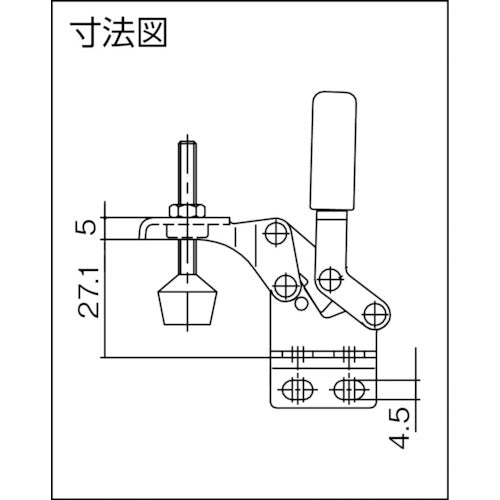

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 75mm Clamping Force: 0.3kN TD09S 1 pc

Catalog number: TD09S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 73 ● Clamping force (kN): 0.3 ● Attached bolt diameter: M4 x 42 ● Clamp arm movement angle (°): 80 ● Handle operation angle (°): 88 ● Clamping force (kN): 0.3 ● Downward pressing type ● Vertical handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNG0442 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
