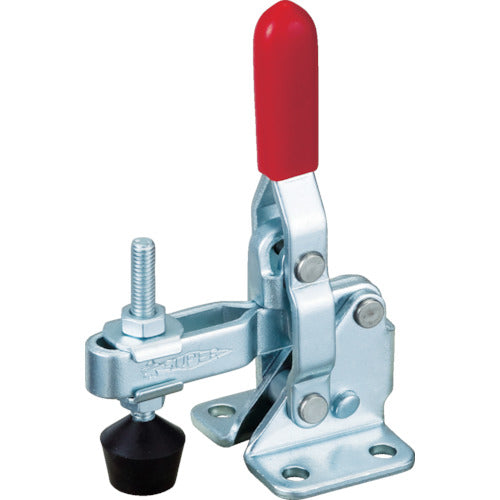

Super Downward Presser Toggle Clamp (Vertical Handle Type) Total Length: 76mm Clamping Force: 0.5kN TDV150F 1 pc

Catalog number: TDV150F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 76 ● Clamping force (kN): 0.5 ● Attached bolt diameter: M4 x 42 ● Clamp arm movement angle (°): 100 ● Handle operation angle (°): 56 ● Clamping force (kN): 0.5 ● Downward pressure type ● Vertical handle ● Flange base Material/Finish: ● General structural rolled steel ● Screw tip rubber: Nitrile rubber Set contents/Accessories: ● Clamp bolt: TNG0442H ● Washer: TFW042 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
