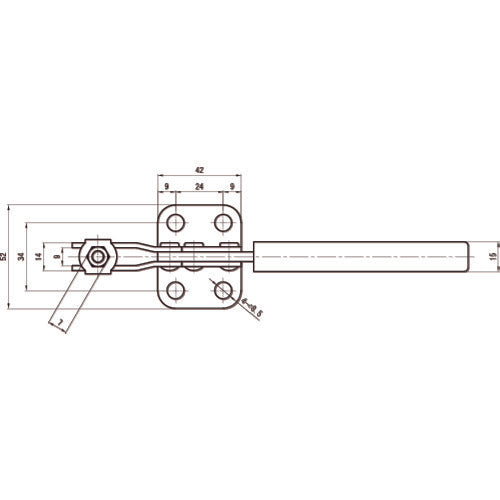

Super Downward Pressing Toggle Clamp (Horizontal Handle Type) Stainless Steel Total Length: 199mm Clamping Force: 2.5kN STDBS38F 1 pc

Catalog number: STDBS38F Features: ● Made of stainless steel, it has excellent rust prevention. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 199 ● Clamping force (kN): 2.5 ● Attached bolt diameter: M6 x 50 ● Clamp arm movement angle (°): 75 ● Handle operation angle (°): 70 ● Clamping force (kN): 2.5 ● Downward pressure type ● Horizontal handle ● Flange base Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Clamp bolt: STNN0650 ● Washer: STFW062 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
