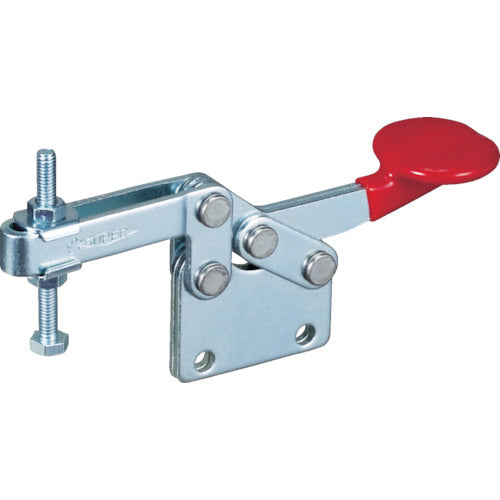

Super Downward Pressing Toggle Clamp (Horizontal Handle Type) Total Length: 112mm Clamping Force: 0.3kN Straight Base TD03S 1 pc

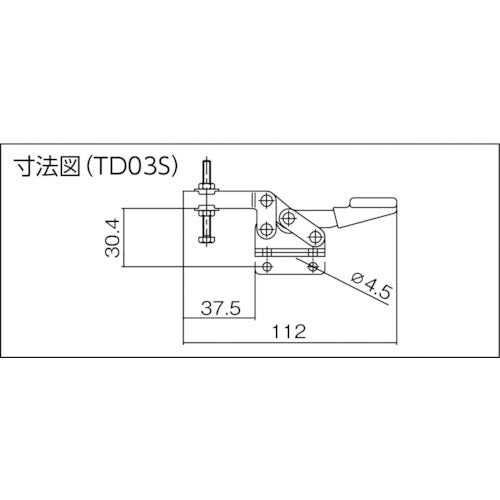

Catalog number: TD03S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 112 ● Clamping force (kN): 0.3 ● Attached bolt diameter: M4 x 40 ● Clamp arm movement angle (°): 65 ● Handle operation angle (°): 55 ● Clamping force (kN): 0.3 ● Downward pressure type ● Horizontal handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0440 ● Washer: TFW042 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
