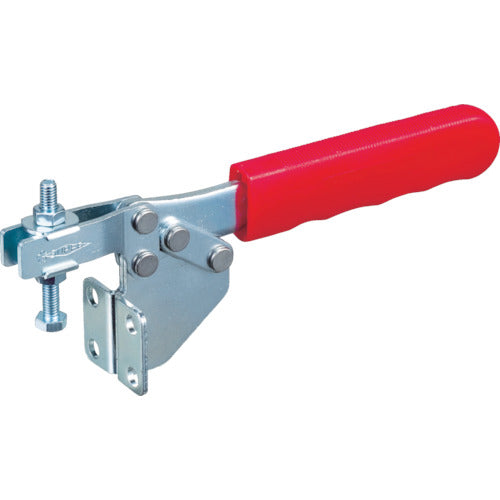

Super Downward Presser Toggle Clamp (Horizontal Handle Type) Total Length: 197mm Clamping Force: 2.5kN TDCS38F 1 pc

Catalog number: TDCS38F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 197 ● Clamping force (kN): 2.5 ● Attached bolt diameter: M6 x 50 ● Clamp arm movement angle (°): 72 ● Handle operation angle (°): 72 ● Clamping force (kN): 2.5 ● Downward pressure type ● Horizontal handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0650 ● Washer: TFW062 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
