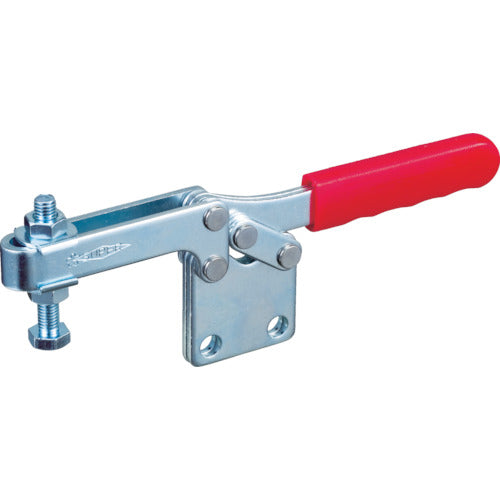

Super Downward Presser Toggle Clamp (Horizontal Handle Type) Total Length: 260mm Clamping Force: 5kN Straight Base TDD38S 1 pc

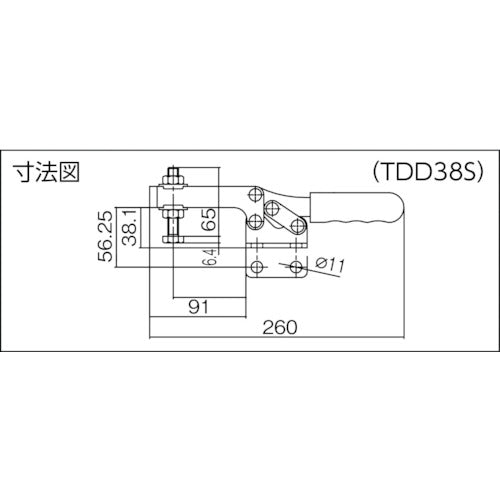

Catalog number: TDD38S Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 260 ● Clamping force (kN): 5.0 ● Attached bolt diameter: M10 x 65 ● Clamp arm movement angle (°): 65 ● Handle operation angle (°): 85 ● Clamping force (kN): 5.0 ● Clamping force (kN): 5 ● Downward pressure type ● Horizontal handle ● Straight base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN1065 ● Washer: TFW101 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
