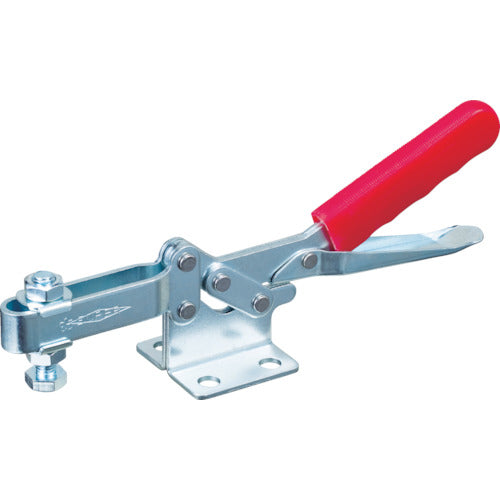

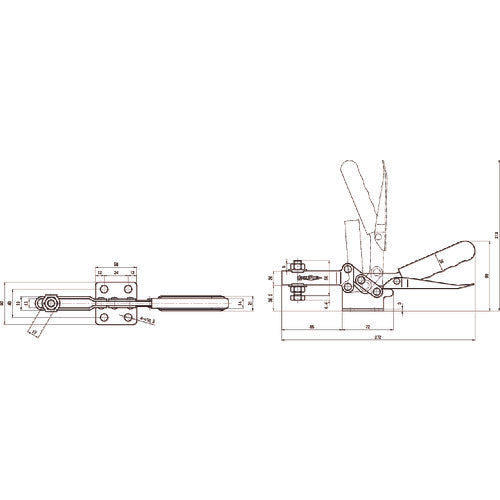

Super Downward Pressing Toggle Clamp (Horizontal Handle Type) Total Length: 272mm Clamping Force: 3kN TDKL38F 1 pc

Catalog number: TDKL38F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 272 ● Clamping force (kN): 3.0 ● Attached bolt diameter: M10 x 50 ● Clamp arm movement angle (°): 80 ● Handle operation angle (°): 85 ● Clamping force (kN): 3.0 ● Clamping force (kN): 3 ● Downward pressing type ● Horizontal handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN1050 ● Washer: TFW102 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
