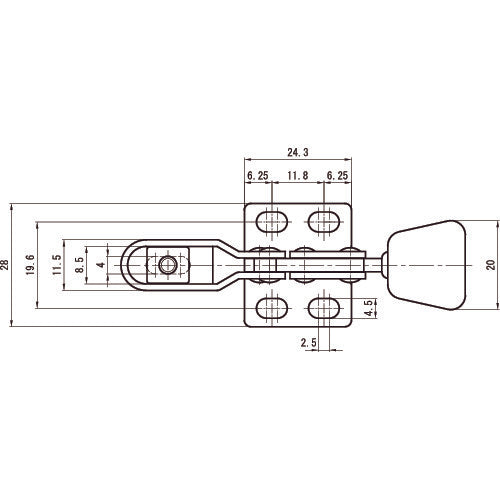

Super Downward Pressing Toggle Clamp (Horizontal Handle Type) Total Length: 78mm Clamping Force: 0.3kN Flange Base Stainless Steel (SUS304) STD08F 1 pc

Catalog number: STD08F Features: ● Made of stainless steel, it has excellent rust prevention. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 78 ● Clamping force (kN): 0.3 ● Attached bolt diameter: M4 x 25 ● Clamp arm movement angle (°): 80 ● Handle operation angle (°): 88 ● Clamping force (kN): 0.3 ● Downward pressing type ● Horizontal handle ● Flange base Material/Finish: ● Stainless steel (SUS304) ● Screw tip rubber: Nitrile rubber Set contents/Accessories: ● Clamp bolt: STNG0425 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
