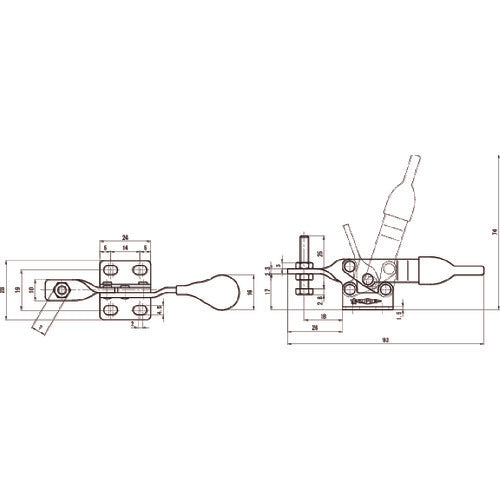

Super Downward Pressing Toggle Clamp (Horizontal Handle Type) Total Length: 93mm Clamping Force: 0.2kN TD01F 1 pc

Catalog number: TD01F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 93 ● Clamping force (kN): 0.2 ● Attached bolt diameter: M4 x 25 ● Clamp arm movement angle (°): 75 ● Handle operation angle (°): 75 ● Clamping force (kN): 0.2 ● Downward pressure type ● Horizontal handle ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN0425 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the clamp position and bolt adjustment.
