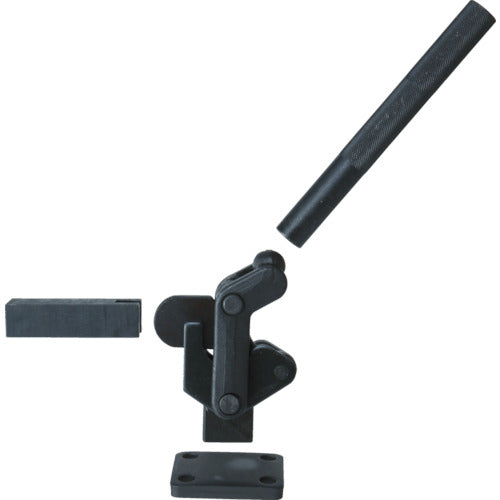

Super Downward Pressing Type Variclamp Base Type: Flange Maximum Support Force: 2.0kN Clamp Arm Movement Angle: 190° TDB1F 1 S

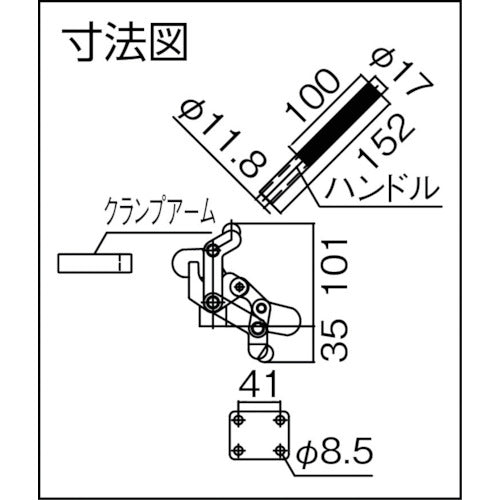

Catalog number: TDB1F Features: ●Assemble the attached parts by welding, so it can be used according to the work situation. Applications: ●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ●Clamp arm movement angle (°): 190 ●Handle operation angle (°): 118 ●Product marking: TDB1F ●Tightening force (kN): 2.0 ●Body height (mm): 101 ●Surface treatment: Black dyeing ●Body dimensions (mm) Height: 101 ●Tightening force (kN): 2 ●Downward pressing type ●Flange base Material/Finish: ●General structural rolled steel Set contents/Accessories: ●Clamp arm ●Handle ●Base
