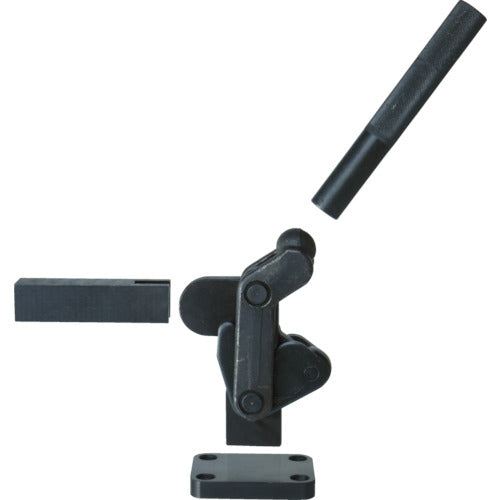

Super Downward Pressing Type Variclamp Base Type: Flange Maximum Support Force: 5.0kN Clamp Arm Movement Angle: 192° TDB2F 1 S

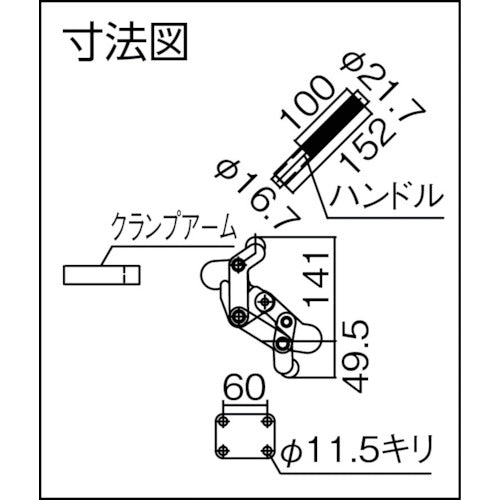

Catalog number: TDB2F Features: ●The attached parts are connected by welding to assemble, so it can be used according to the work situation. Applications: ●Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ●Clamp arm movement angle (°): 192 ●Handle operation angle (°): 120 ●Product marking: TDB2F ●Clamping force (kN): 5.0 ●Main body height (mm): 141 ●Surface treatment: Black dyeing ●Clamping force (kN): 5 ●Main body dimensions (mm) Height: 141 ●Downward pressing type ●Flange base Material/Finish: ●General structural rolled steel Set contents/Accessories: ●Clamp arm ●Handle ●Base
