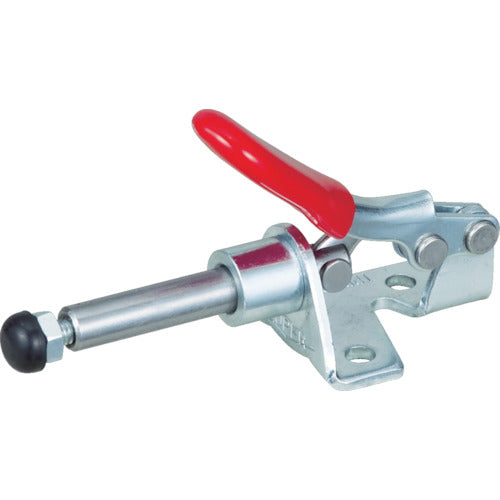

Super Horizontal Push Toggle Clamp Total Length: 116mm Clamping Force: 0.45kN TPPL10F 1 pc

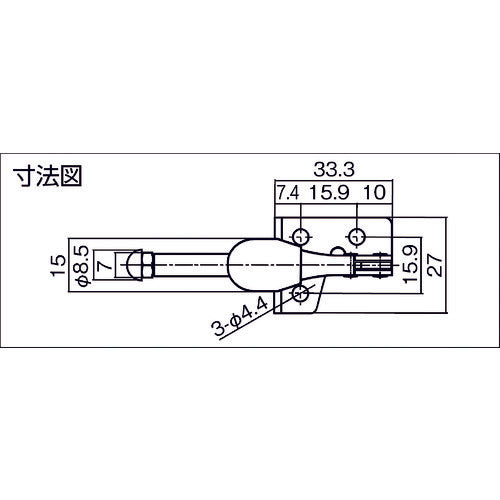

Catalog number: TPPL10F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 75 ● Pressing force (kN): 0.45 ● Attached bolt diameter: M4 x 22 ● Handle operation angle (°): 140 ● Stroke (mm): 14 ● Horizontal pressing type ● Flange base Material/Finish: ● General structural rolled steel ● Screw tip rubber: Nitrile rubber Set contents/Accessories: ● Clamp bolt nut: TNG0422 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
