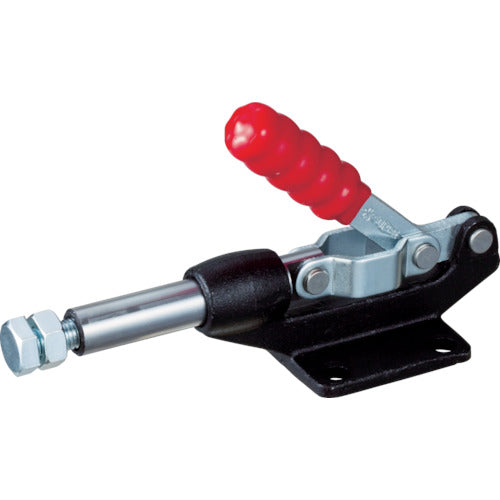

Super Horizontal Push Toggle Clamp Total Length: 234mm Clamping Force: 3.86kN TPL200F 1 pc

Catalog number: TPL200F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 172 ● Attached bolt diameter: M10 x 30 ● Handle operation angle (°): 190 ● Stroke (mm): 42 ● Clamping force (kN): 3.86 ● Horizontal push type ● Flange base Material/Finish: ● General structural rolled steel Set contents/Accessories: ● Clamp bolt: TNN1030 Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
