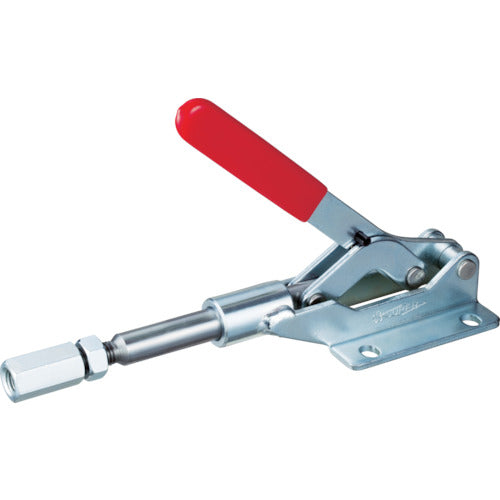

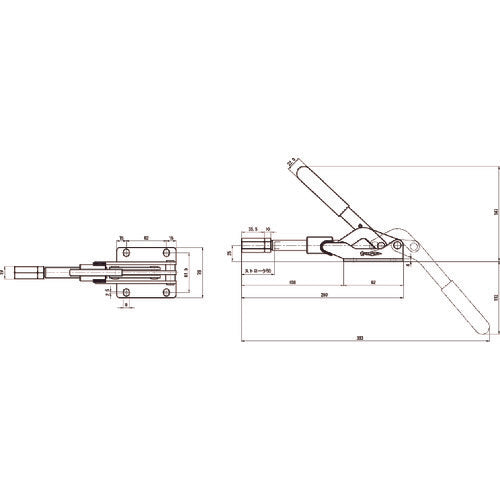

Super horizontal push toggle clamp Total length: 383mm Clamping force: 4.54kN TPB50F 1 pc

Catalog number: TPB50F Features: ● Most models use stainless steel for the crimp (support) pins, making them suitable for long-term use. Applications: ● Ideal for inspection jigs, welding jigs, other assembly jigs, and processing jigs. Specifications: ● Total length (mm): 383 ● Pressing force (kN): 4.54 ● Handle operating angle (°): 190 ● Stroke (mm): 50 ● Attached nut diameter: M12 ● Horizontal pressing type ● Flange base Material/Finish: ● Rolled steel for general steel materials Set contents/Accessories: ● Coupling nut set: TCN12S Note: ● The listed support force is the maximum value. Please note that the value will decrease depending on the pressing position and bolt adjustment.
