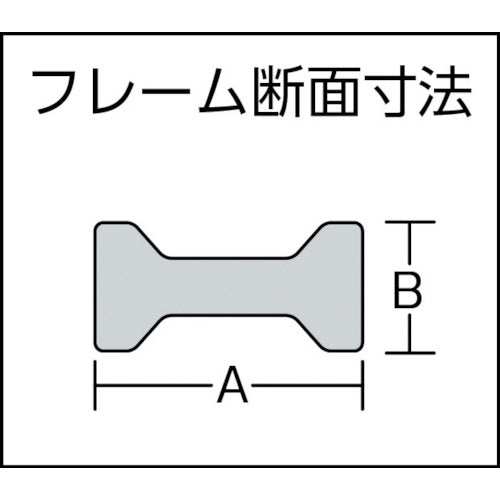

Catalog number: FC1760SH Features: ●The screw head is hexagonal and can be tightened with a wrench, allowing for more secure tightening. ●The maximum tightening pressure when clamping 150 mm is 25.0 kN. ●The heavy-duty adapter allows for angle tightening up to approximately 35°. Specifications: ●Total length (mm): 760 ●Maximum opening (mm): 600 ●Depth (mm): 175 ●Frame dimension (mm) A: 40 ●Frame dimension (mm) B: 20 Material/Finish: ●Special steel
