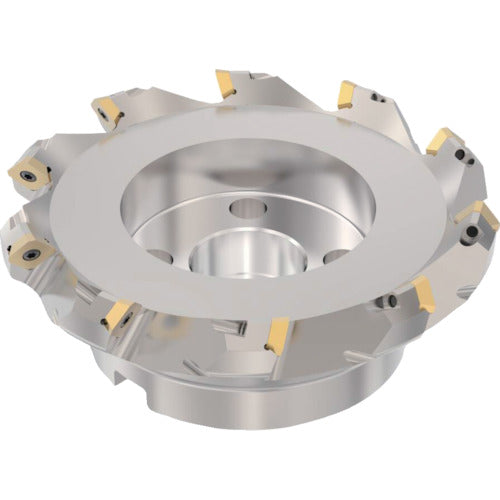

Seco Milling Quattromill Cutter R220.53-8160-12-7 1 piece

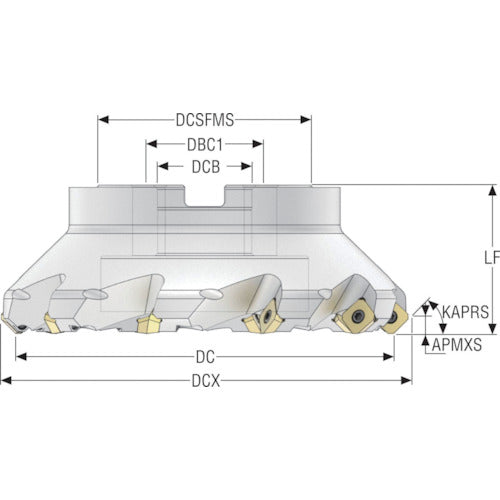

Catalog number: R220.53-8160-12-7 Features: ●QuattroMill is SECO's representative face mill cutter, and it can realize face milling with low cutting resistance. ●It improves productivity, ease of use, reliability, and accuracy for all face milling applications and materials. ●QuattroMill has more functions than general-purpose face mills. ●It is a simple solution with multi-blade setting, and improves productivity, ease of use, reliability, and accuracy for all face milling applications and materials. Specifications: ●APMXS(mm):6.0 ●BD(mm):- ●DBC1(mm):66.7 ●DC(mm):160.0 ●DCB(mm):40.0 ●DCSFMS(mm):90.0 ●DCX(mm):172.0 ●KAPRS(deg):45.0 ●LF(mm):63.0 ●Insert:SE.X1204 ●KAPRS°:45.0 ●RPMX:8300 ●ZEFP:7 ●Mounting shape:Arbor ●SECO Quattromill cutter ●Compatible insert: SE...12 ●Quattromill R217/220.53-12 One meter specification
