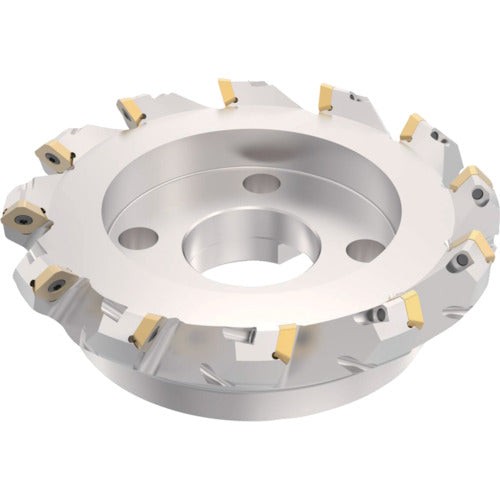

Seco Milling Quattromill Cutter R220.53-8160-15-10 1 piece

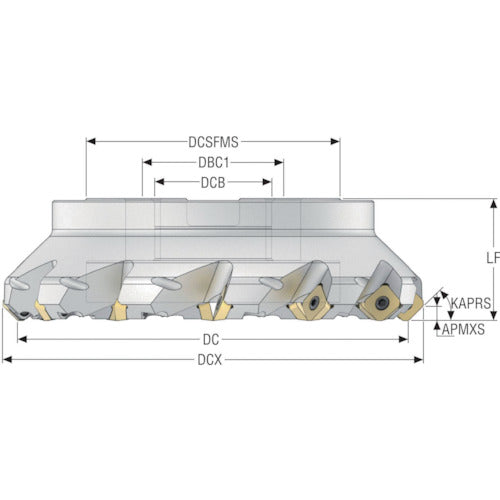

Catalog number: R220.53-8160-15-10 Features: ●QuattroMill is SECO's representative face mill cutter, and it can realize face milling with low cutting resistance. ●It improves productivity, ease of use, reliability and precision for all face milling applications and materials. ●QuattroMill has more functions than general-purpose face mills. ●It is a simple solution with multi-blade setting, and improves productivity, ease of use, reliability and precision for all face milling applications and materials. Specifications: ●APMXS(mm):7.5 ●BD(mm):- ●DBC1(mm):66.7 ●DC(mm):160.0 ●DCB(mm):40.0 ●DCSFMS(mm):90.0 ●DCX(mm):176.0 ●KAPRS(deg):45.0 ●LF(mm):63.0 ●Insert:SE.X1505 ●KAPRS°:45.0 ●RPMX:5200 ●ZEFP:10 ●Mounting shape:Arbor ●SECO Quattromill cutter ●Compatible insert: SE...15 ●Quattromill R220.53-15 One meter specification
