SECO Milling Side Cutter 335.18/25 Cutter 335.18-080.12.27-4N 1 piece

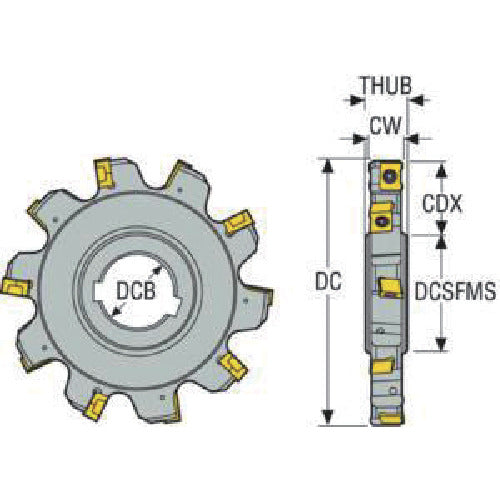

Catalogue number: 335.18-080.12.27-4N Features: ●Positive insert provides extremely low cutting resistance. ●Fixed pocket and cassette specifications are available. ●Applicable insert cutting edge R can be selected from 0.4mm to 4.0mm. ●Highly economical, versatile and smooth cutting side cutter system dedicated to medium width cutting groove machining or shoulder machining. Specifications: ●CDX(mm): 19.0 ●CW(mm): 12.0 ●DC(mm): 80.0 ●DCB(mm): 27.0 ●DCSFMS(mm): 41.0 ●THUB(mm): 15.0 ●Insert: LNK.06.. ●LF(mm): 13.5 ●RPMX: 10500 ●ZEFP: 4 ●ZNP: 8 ●Mounting shape: Arbor hole ●SECO High Performance Side Cutter R335.18●Cutting width setting standard; CW 8 - 20 mm●Cutter diameter 32 - 315 mm●Cutter 335.18 - Insert LNK. One meter specification_x000D_●Width 12/14 mm - Groove processing - Fixed pocket
