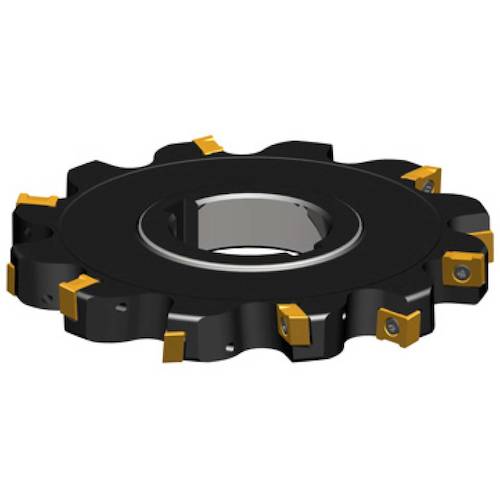

SECO Milling Side Cutter 335.18/25 Cutter 335.18-125.12.40-6N 1 pc

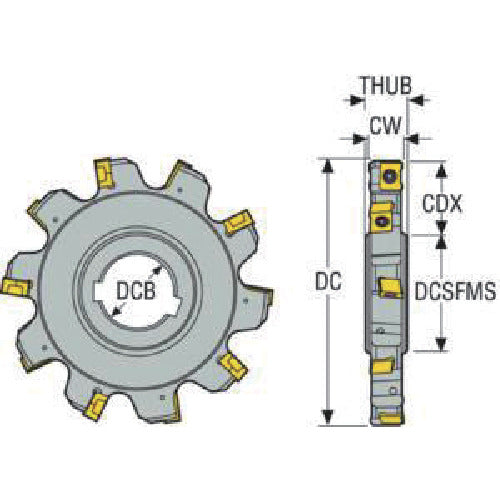

Catalogue number: 335.18-125.12.40-6N Features: ●Positive insert for a side cutter with extremely low cutting resistance. ●Fixed pocket and cassette specifications can be selected. ●Applicable insert cutting edge R can be selected from 0.4mm to 4.0mm. ●A highly economical, versatile and smooth cutting side cutter system dedicated to medium width cutting groove machining or shoulder machining. Specifications: ●CDX(mm): 33.0●CW(mm): 12.0●DC(mm): 125.0●DCB(mm): 40.0●DCSFMS(mm): 55.0●THUB(mm): 15.0●Insert: LNK.06..●LF(mm): 13.5●RPMX: 8400●ZEFP: 6●ZNP: 12●Mounting shape: Arbor hole●SECO High-performance side cutter R335.18●Cutting width setting standard; CW 8 - 20 mm●Cutter diameter 32 - 315 mm●Cutter 335.18 - Insert LNK. One meter specification_x000D_●Width 12/14 mm - Groove processing - Fixed pocket
