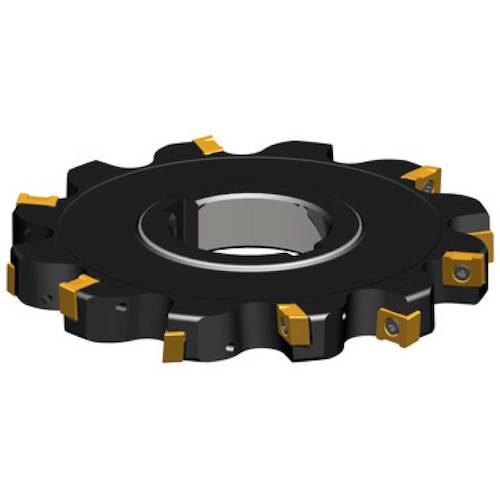

SECO Milling Side Cutter 335.18/25 Cutter 335.18-160.1215.40-6N 1 pc

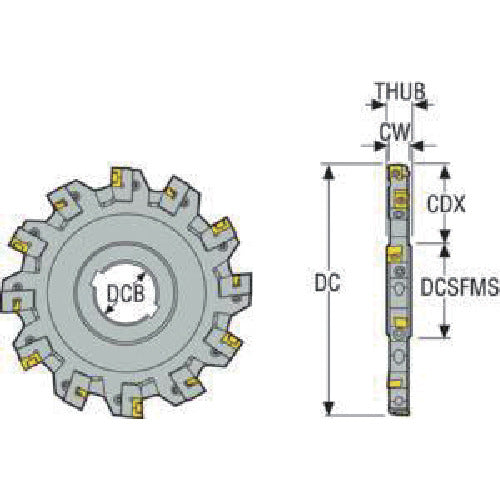

Catalogue number: 335.18-160.1215.40-6N Features: * A side cutter with extremely low cutting resistance due to the positive insert. * Fixed pocket and cassette specifications can be selected. * Applicable chip cutting edge R can be selected from 0.4 mm to 4.0 mm. * A very economical, versatile and smooth cutting side cutter system dedicated to cutting work for medium-width cutting groove machining or shoulder machining Specifications: ●CDX(mm): 50.2 ●DC(mm): 160.0 ●DCB(mm): 40.0 ●DCSFMS(mm): 55.0 ●THUB(mm): 15.0 ●Insert: LNK.08.. ●CWN(mm): 12.0 ●CWX(mm): 15.0 ●LF(mm): 13.5 ●RPMX: 7500 ●ZEFP: 6 ●ZNP: 12 ●Mounting shape: Arbor hole ●SECO High-performance side cutter R335.18 ●Cutting width setting standard; CW 8 - 20 mm ●Cutter diameter 32 - 315 mm ●Width 12-15 mm - Groove processing - Adjustable type _x000D_ ●Cutter 335.18 - Insert LNK. One meter specification
