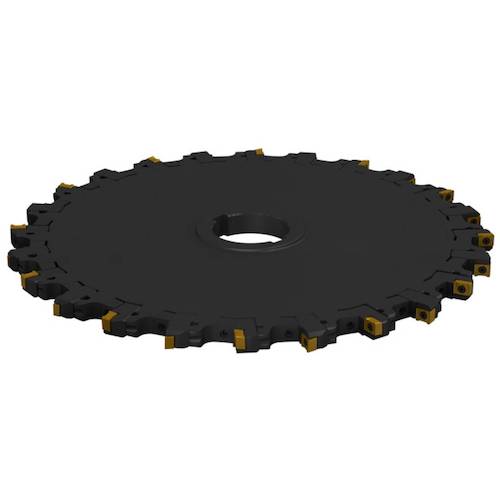

SECO Milling Side Cutter 335.18/25 Cutter 335.18-200.1012XL.50-7N 1 piece

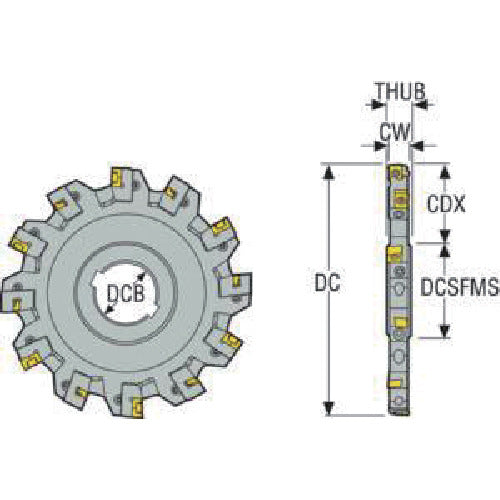

Catalogue number: 335.18-200.1012XL.50-7N Features: * A side cutter with extremely low cutting resistance due to the positive insert. * Fixed pocket and cassette specifications can be selected. * Applicable insert cutting edge R can be selected from 0.4mm to 4.0mm. * A very economical, versatile and smooth cutting side cutter system dedicated to cutting work for medium-width cutting groove machining or shoulder machining Specifications: ●CDX(mm): 63.5 ●DC(mm): 200.0 ●DCB(mm): 50.0 ●DCSFMS(mm): 69.0 ●THUB(mm): 15.0 ●Insert: LNK.06.. ●CWN(mm): 10.0 ●CWX(mm): 12.0 ●LF(mm): 12.5 ●RPMX: 6700 ●ZEFP: 7 ●ZNP: 14 ●Mounting shape: Arbor hole ●SECO High-performance side cutter R335.18 ●Cutting width setting standard; CW 8 - 20 mm ●Cutter diameter 32 - 315 mm ●Cutter 335.18 - Insert LNK. One meter specification_x000D_ ●Width 8-12 mm - Groove processing - Adjustable type
