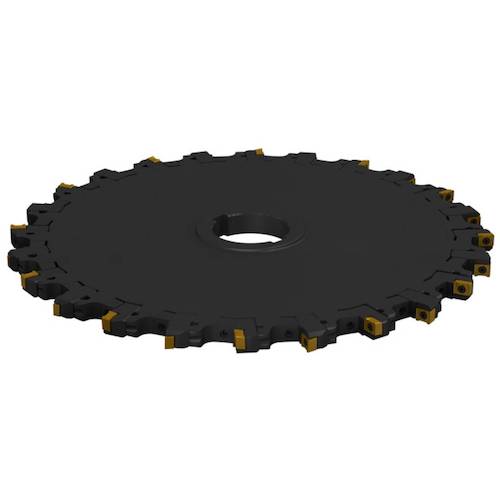

SECO Milling Side Cutter 335.18/25 Cutter 335.18-200.1215XL.50-7N 1 piece

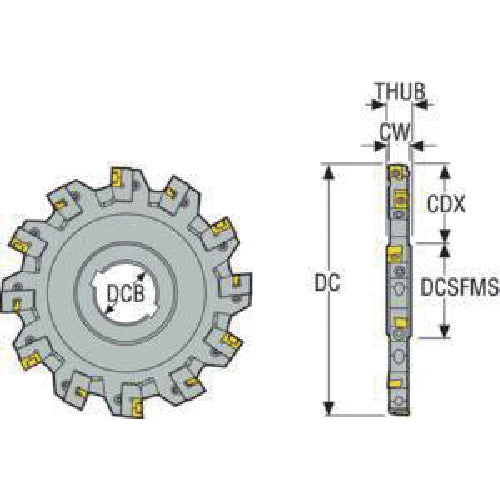

Catalogue number: 335.18-200.1215XL.50-7N Features: * A side cutter with extremely low cutting resistance due to the positive insert. * Fixed pocket and cassette specifications can be selected. * Applicable chip cutting edge R can be selected from 0.4 mm to 4.0 mm. * A very economical, versatile and smooth cutting side cutter system dedicated to cutting work for medium-width cutting groove machining or shoulder machining Specifications: ●CDX(mm): 63.5●DC(mm): 200.0●DCB(mm): 50.0●DCSFMS(mm): 69.0●THUB(mm): 15.0●Insert: LNK.08..●CWN(mm): 12.0●CWX(mm): 15.0●LF(mm): 13.5●RPMX: 6700●ZEFP: 7●ZNP: 14●Mounting shape: Arbor hole●SECO High-Performance Side Cutter R335.18●Cutting width setting standard; CW 8 - 20 mm●Cutter diameter 32 - 315 mm●Width 12-15 mm - Groove processing - Adjustable type●Cutter 335.18 - Insert LNK. One meter specification
