SECO Milling Side Cutter 335.18/25 Cutter 335.25-160.15.40-7N 1 pc

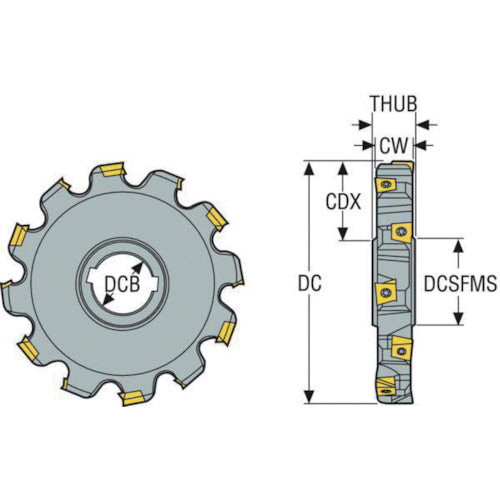

Catalog number: 335.25-160.15.40-7N Features: ● Designed for wide groove or shoulder machining with strong insert clamping surface. ● Positive rake angle cutting edge shape reduces cutting resistance. Inserts can be used with 4 corners at all nose radii. ● Fixed pocket and cassette types are available. ● Easy to use, strong and smooth disc mills are designed for wide groove or shoulder machining. Specifications: ● CDX (mm): 52.0 ● CW (mm): 15.0 ● DC (mm): 160.0 ● DCB (mm): 40.0 ● DCSFMS (mm): 55.0 ● THUB (mm): 15.0 ● LF (mm): 15.0 ● RPMX: 7200 ● ZEFP: 7 ● ZNP: 14 ● Mounting shape: Arbor hole●Chip; First recommendation: XNHQ09...●SECO High-performance side cutter R335.25●Cutter diameter standard 80 - 315 mm●Width 15/20/25 mm − Groove processing − Fixed pocket_x000D_●Cutter 335.25 − Insert XNHQ/LNHQ One meter specification
