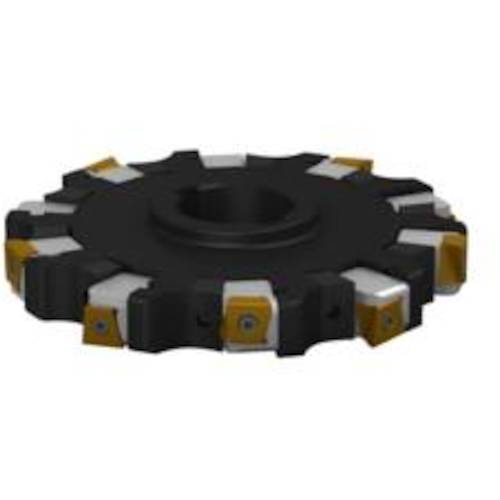

SECO Milling Side Cutter 335.18/25 Cutter 335.25-160.2126.40-10L 1 pc

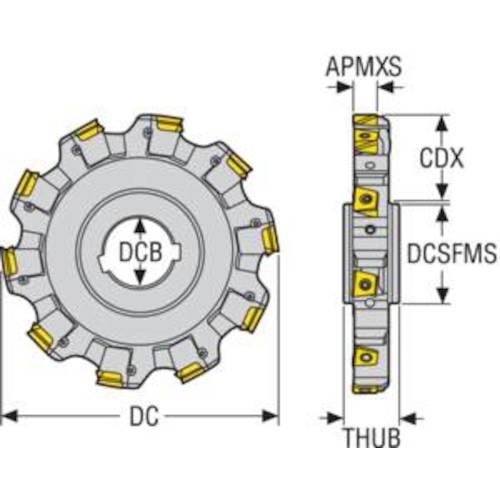

Catalog number: 335.25-160.2126.40-10L Features: ● Designed for wide groove or shoulder machining with strong insert clamping surface. ● Positive rake angle cutting edge shape reduces cutting resistance, inserts can be used at all nose radii with 4 corners. ● Fixed pocket and cassette types available. ● Easy to use, strong and smooth disc mill designed for wide groove or shoulder machining Specifications: ● CDX (mm): 50.3 ● DC (mm): 160.0 ● DCB (mm): 40.0 ● DCSFMS (mm): 55.0 ● THUB (mm): 32.0 ● APMXS (mm): 13.0 ● LF (mm): 5.5 ● RPMX: 4400 ● ZEFP: 10 ● Chip; Replacement: LNHQ1407... ● Mounting shape: Arbor hole●Chip; first recommendation: XNHQ1407...●Maximum cutting depth 13-16 mm − Shoulder cutting − Left-handed cassette●Cutter 335.25 − Insert XNHQ/LNHQ 1 meter specification
