SECO Milling Side Cutter 335.18/25 Cutter 335.25-200.1721.50-6N 1 pc

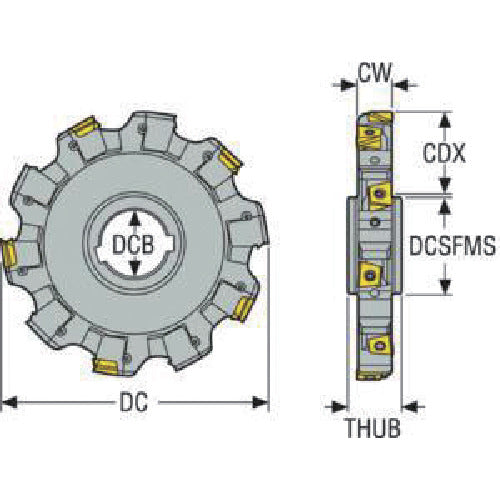

Catalog number: 335.25-200.1721.50-6N Features: ● Designed for wide groove machining or shoulder machining with a strong insert clamping surface. ● The cutting edge shape with a positive rake angle reduces cutting resistance, and the insert can be used with 4 corners for all nose radii. ● Fixed pocket type and cassette type are available. ● Easy to use, strong and smooth disc mill is designed for wide groove machining or shoulder machining. Specifications: ●CDX(mm): 63.5 ●DC(mm): 200.0 ●DCB(mm): 50.0 ●DCSFMS(mm): 69.0 ●THUB(mm): 21.0 ●Insert: XNHQ12.. ●CWN(mm): 17.0 ●CWX(mm): 21.0 ●LF(mm): 19.0 ●RPMX: 5100 ●ZEFP: 6 ●ZNP: 12 ●Mounting shape: Arbor hole ●SECO high performance side cutter R335.25 ●Cutter diameter standard 80 - 315 mm ●Cutter 335.25 - Insert XNHQ One meter specification_x000D_ ●Width 13.5 - 21 mm - Groove processing - Adjustable type
