SECO Milling Side Cutter 335.18/25 Cutter 335.25-250.20.50-9N 1 pc

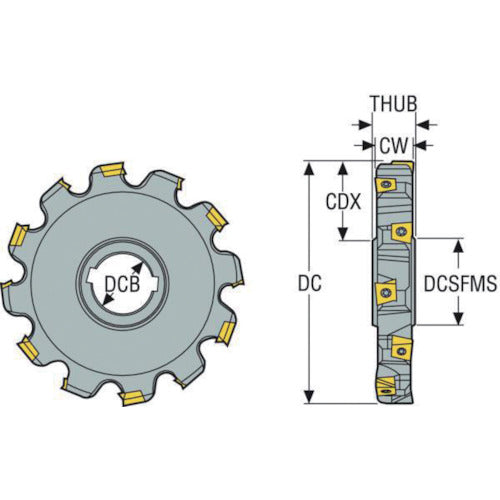

Catalog number: 335.25-250.20.50-9N Features: ● Designed for wide groove machining or shoulder machining with strong insert clamping surface. ● Tip shape with positive rake angle reduces cutting resistance. Insert can be used with 4 corners at all nose radii. ● Fixed pocket type and cassette type are available. ● Easy to use, strong and smooth disc mill is designed for wide groove machining or shoulder machining. Specifications: ● CDX (mm): 88.45 ● CW (mm): 20.0 ● DC (mm): 250.0 ● DCB (mm): 50.0 ● DCSFMS (mm): 71.0 ● THUB (mm): 20.0 ● LF (mm): 20.0 ● RPMX: 4600 ● ZEFP: 9 ● ZNP: 18 ● Mounting shape: Arbor hole●Chip; First recommendation: XNHQ12...●SECO High-performance side cutter R335.25●Cutter diameter standard 80 - 315 mm●Width 15/20/25 mm − Groove processing − Fixed pocket_x000D_●Cutter 335.25 − Insert XNHQ/LNHQ One meter specification
