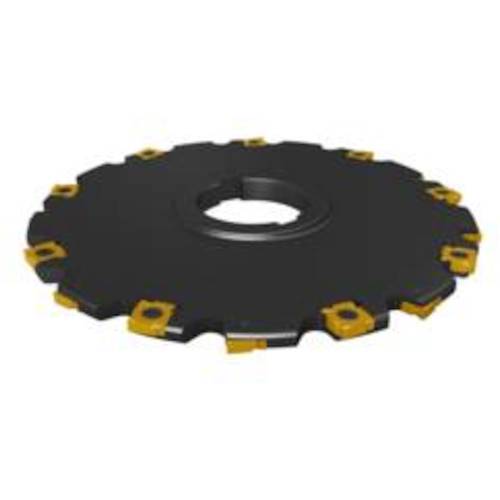

SECO Milling Side Cutter 335.19 Cutter 335.19-063.04.22-4 1 piece

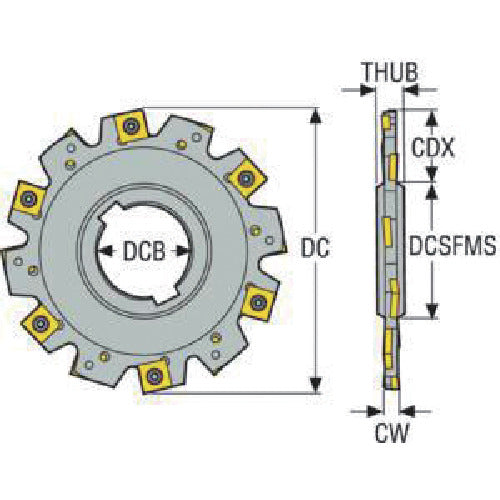

Catalog number: 335.19-063.04.22-4 Features: ●Side cutter with extremely low cutting resistance. Up to 4 corners of the insert can be used. ●R/L handed inserts produce a flat groove bottom. ●A full R shape can be achieved by combining inserts. ●Economical, high-precision, low-cutting resistance side cutter system for narrow groove machining and cutting. Specifications: ●CDX (mm): 13.6 ●CW (mm): 4.0 ●DCB (mm): 22.0 ●DC (mm): 63.0 ●DCSFMS (mm): 33.0 ●LF (mm): 6.0 ●RPMX: 17100 ●SNHQ: 1102, 1102 ●THUB (mm): 8.0 ●ZEFP: 4 ●ZNP: 8 ●Mounting shape: Arbor hole●CTWS (compatible chip): SNHQ1102..L+R/335.19-1102●DC: 63.0mmDCB: 22.0mmDCFMS: 33.0mm●Shank type: Arborhole●CW: 4.0mm●ZNP (number of chips attached): 8●ZEFP (number of effective blades): 4●THUB: 8.0mm●Cutter 335.19 − Insert SNHQ One meter specification_x000D_●Width 4 mm − Groove processing
