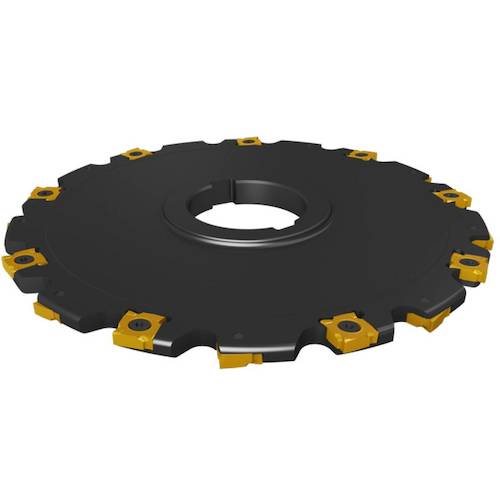

SECO Milling Side Cutter 335.19 Cutter 335.19-100.12.27-5 1 pc

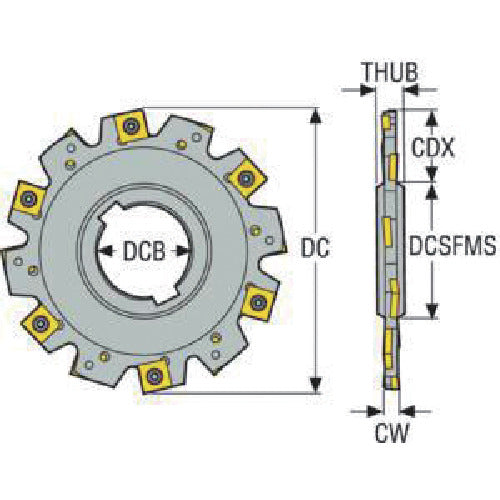

Catalog number: 335.19-100.12.27-5 Features: ●Side cutter with extremely low cutting resistance. Inserts can be used with up to 4 corners. ●R/L inserts produce a flat groove bottom. ●Full R shape is also possible by combining inserts. ●Economical, high-precision, low-cutting resistance side cutter system for narrow groove processing and cutting. Specifications: ●CDX(mm): 27.9 ●CW(mm): 12.0 ●DCB(mm): 27.0 ●DC(mm): 100.0 ●DCSFMS(mm): 41.0 ●LF(mm): 12.0 ●RPMX: 6000 ●SNHQ: 1207, 1207 ●THUB(mm): 12.0 ●ZEFP: 5 ●ZNP: 10 ●Mounting shape: Arbor hole●CTWS (compatible chip): SNHQ1207..L+R / 335.19-1207●DC: 100.0mm DCB: 27.0mm DCFMS: 41.0mm●Shank type: Arbor hole●CW: 12.0mm●ZNP (number of chips installed): 10●ZEFP (number of effective teeth): 5●THUB: 12.0mm●Width 12 mm − Groove processing_x000D_●Cutter 335.19 − Insert SNHQ One meter specification
