Seco Milling Square T4 Cutter C5-R217.94-054-069-12.4A 1 pc

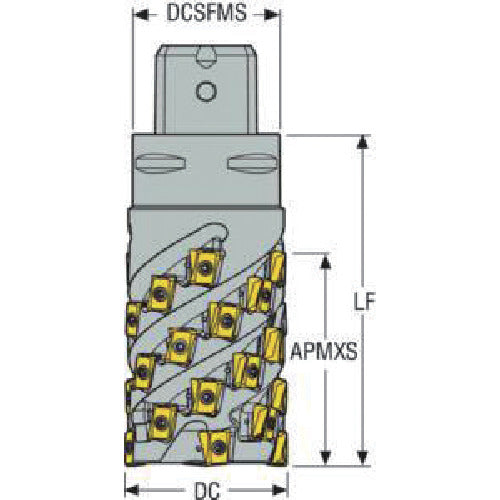

Catalog number: C5-R217.94-054-069-12.4A Features: ●Ideal for rough machining of vertical walls, and can expect a very large amount of chip removal. ●By mounting the insert vertically, the body core thickness is large, and the insert thickness in the cutting direction is also high, resulting in very high rigidity. ●Highly efficient cutting is possible at low cost regardless of the work material. Specifications: ●APMXS(mm):70.0●DC(mm):54.0●DCB(mm):-●DCSFMS(mm):50.0●LF(mm):105.0●Insert:LOEX12..●LUX(mm):84.1●RPMX:9700●ZEFP:4●ZNP:24●Mounting shape:Seco-Capto●SECO T4-12 helical cutter C5 specifications●Compatible insert; LOEX12...●T4 - R217/220.94-12 One meter specification
