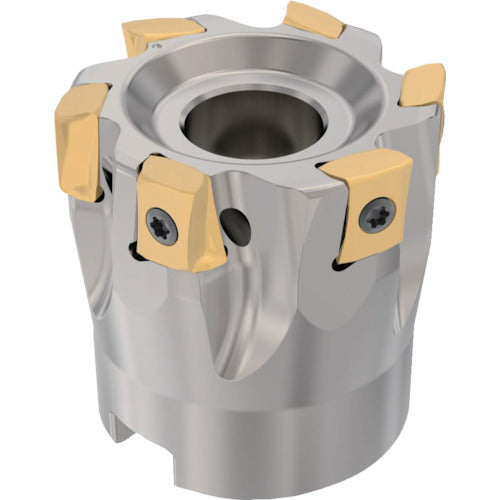

SECO Milling Square T4 Cutter R220.94-08 R220.94-0040-08-6A 1 pc

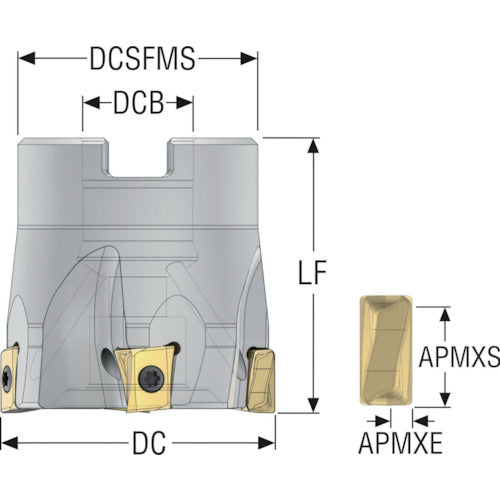

Catalog number: R220.94-0040-08-6A Features: ●Ideal for rough machining of vertical walls, with a very large chip removal rate. ●The insert is mounted vertically, resulting in a large body core thickness and a high degree of rigidity due to the insert thickness in the cutting direction. ●Highly efficient cutting is possible at low cost regardless of the work material. ●SQUARE T4 is made for rough machining and semi-finish machining, with four cutting edges and an innovative insert vertical design. ●This increases the contact surface between the insert and the cutter body, resulting in better finished surface accuracy in groove machining, contouring machining, and plunging machining. Specifications: ●APMXS(mm): 8.0 ●DC(mm): 40.0 ●DCB(mm): 16.0 ●DCSFMS(mm): 35.0 ●LF(mm): 40.0 ●Insert: LOEX08.. ●APMXE(mm): 2.0 ●KAPRS°: 90 ●RPMX: 13000 ●ZEFP: 6 ●Mounting shape: Arbor ●SECO T4-08 Shoulder cutter ●Compatible insert: LOEX08... ●Square T4 - R217/220.94-08 One meter specification
