Seco Milling Turbo Mill Cutter C5-R217.69-032-055-12.3AN 1 pc

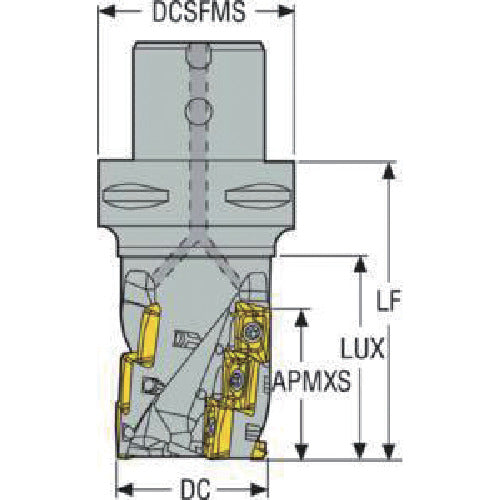

Catalog number: C5-R217.69-032-055-12.3AN Features: ●SECO's representative shoulder cutter turbo mill. ●The highly versatile turbo mill is suitable for most roughing, semi-finishing and finishing processes, achieving long tool life and high precision due to its optimized properties of reducing heat generation and cutting force. ●This shoulder cutter has two corners and can also be used for 3D machining. There are a wide variety of combinations of nose radius settings, cutting edge treatments and material types. ●Seco Tools' lineup of high-performance turbo helical cutters has improved high feed rates, cutting depths and chip removal rates for contouring and profiling applications. ●These cutters offer the first choice for mixed production, in all workpiece materials Specifications: ●APMXS(mm):55.0●DC(mm):32.0●DCB(mm):-●DCSFMS(mm):50.0●LF(mm):90.0●Insert:XO.X12..*●KAPRS°:90●LUX(mm):67.0●RPMX:18400●ZEFP:3●ZNP:15●Mounting shape:Seco-Capto●SECO Turbo 12 helical cutter C5 specifications●Compatible inserts: XO..12…●Turbo 12 - R217/220.69−12 one meter specifications
