Seco Milling Turbo Mill Cutter R217.69-1616.0-20-06.2N 1 piece

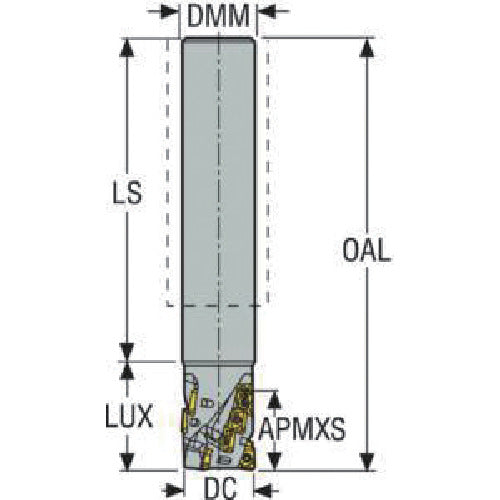

Catalog number: R217.69-1616.0-20-06.2N Features: ●This is SECO's representative shoulder cutter turbo mill. ●The highly versatile turbo mill is suitable for most roughing, semi-finishing and finishing processes, achieving long tool life and high precision due to its optimized properties that reduce heat generation and cutting force. ●This shoulder cutter has two corners and can also be used for 3D processing. There are a wide variety of combinations of nose R settings, cutting edge treatments and material types. ●Seco Tools' lineup of high-performance turbo helical cutters has improved high feed rates, cutting depths and chip removal rates for contouring and profiling applications. ●These cutters offer the first choice for mixed production, in all workpiece materials Specifications: ●APMXS(mm):20.0 ●DC(mm):16.0 ●DCB(mm):- ●DCSFMS(mm):- ●LF(mm):- ●Insert: XO.X06.. ●DMM(mm):16.0 ●KAPRS°:90 ●LS(mm):80.0 ●LUX(mm):30.0 ●OAL(mm):110.0 ●RPMX:48000 ●ZEFP:2 ●ZNP:8 ●Mounting shape:Straight ●SECO Turbo Mill Shoulder Cutters ●Compatible inserts: XO..06… ●Turbo 06 - R217.69−06 One meter specification
