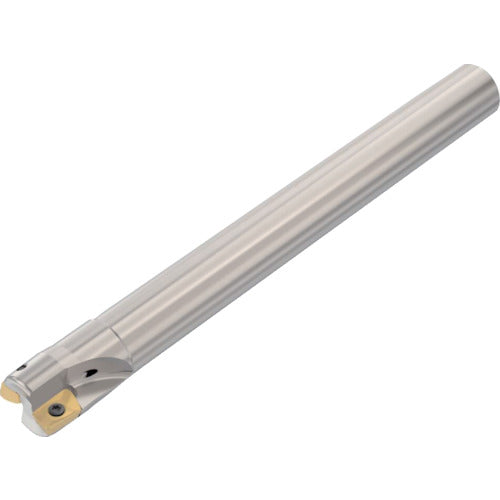

Seco Milling Turbo Mill Cutter R217.69-1618.0-10-2A 1 piece

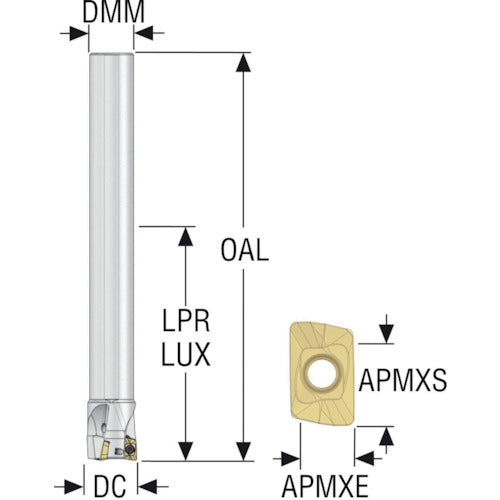

Catalog number: R217.69-1618.0-10-2A Features: ●This is SECO's representative shoulder cutter, the Turbo Mill. ●This highly versatile Turbo Mill is suitable for most rough, semi-finishing, and finishing processes, and its optimized characteristics of reducing heat generation and cutting force provide long tool life and high precision. ●This shoulder cutter has two corners and can also be used for 3D processing. There are a wide variety of combinations of nose R settings, cutting edge treatments, and material types. ●The Turbo series can maximize the efficiency of square shoulder processing. ●This highly versatile cutter is suitable for most rough, semi-finishing, and finishing processes, and its optimized characteristics of reducing cutting heat and cutting force provide long tool life and high precision. Specifications: ●APMXS(mm):9.0●DC(mm):18.0●DCB(mm):-●DCSFMS(mm):-●LF(mm):-●Insert:XO.X10..●APMXE(mm):6.0●Cmax(mm):30.5●Cmin(mm):21.0●DMM(mm):14.0●LPR(mm):112.0●LUX(mm):112.0●OAL(mm):160.0●RMPX°:7.5●RPMX:27800●ZEFP:2●Mounting shape:Straight●SECO Turbo Mill Shoulder Cutter●Compatible insert: XO..10...●Turbo 10 - R217.69-10 One meter specification
