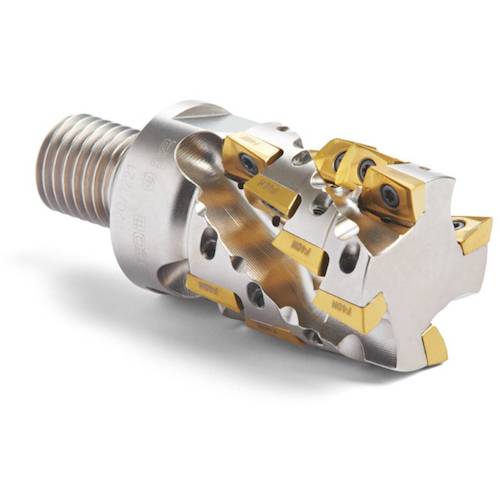

Seco Milling Turbo Mill Cutter R217.69-1632.RE-025-10.3A 1 piece

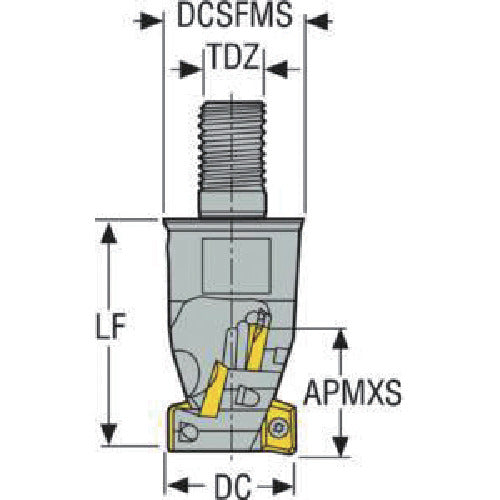

Catalog number: R217.69-1632.RE-025-10.3A Features: ●This is SECO's representative shoulder cutter turbo mill. ●The highly versatile turbo mill is suitable for most roughing, semi-finishing and finishing processes, achieving long tool life and high precision due to its optimized properties that reduce heat generation and cutting force. ●This shoulder cutter has two corners and can also be used for 3D machining. There are a wide variety of combinations of nose radius settings, cutting edge treatments and material types. ●Seco Tools' lineup of high-performance turbo helical cutters has improved high feed rates, cutting depths and chip removal rates for contouring and profiling applications. ●These cutters offer the first choice for mixed production, in all workpiece materials Specifications: ●APMXS(mm):25.0●DC(mm):32.0●DCB(mm):-●DCSFMS(mm):30.0●LF(mm):45.0●Insert:XO.X10..●RPMX:20800●TDZ:M16●ZEFP:3●ZNP:9●Mounting shape:CombiMaster●SECO Turbo Mill Shoulder Cutter●Compatible inserts: XO..10…●Turbo 10 - R217/220.69−10 One meter specification
