Seco Milling Turbo Mill Cutter R217.69-1632.RE-06-8AN 1 piece

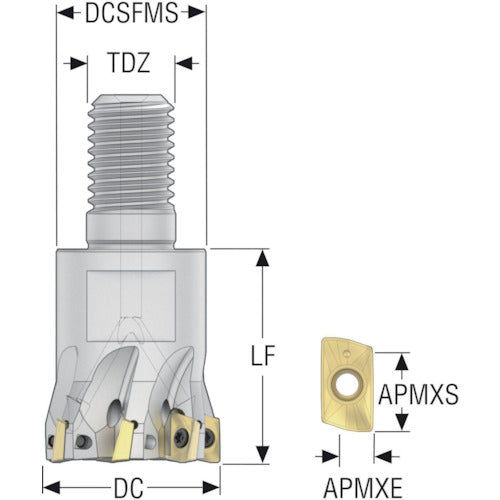

Catalog number: R217.69-1632.RE-06-8AN Features: ●This is SECO's representative shoulder cutter, the Turbo Mill. ●This highly versatile Turbo Mill is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing heat generation and cutting force provide long tool life and high precision. ●This shoulder cutter has two corners and can also be used for 3D processing. There are a wide variety of combinations of nose R settings, cutting edge treatments and material types. ●The Turbo series can maximize the efficiency of square shoulder processing. ●This highly versatile cutter is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing cutting heat and cutting force provide long tool life and high precision. Specifications: ●APMXS(mm):5.0 ●DC(mm):32.0 ●DCB(mm):- ●DCSFMS(mm):28.0 ●LF(mm):35.0 ●Insert:XO.X06.. ●APMXE(mm):3.0 ●Cmax(mm):63.0 ●Cmin(mm):58.5 ●KAPRS°:90 ●RMPX°:1.5 ●RPMX:33600 ●TDZ:M16 ●ZEFP:8 ●Mounting shape:CombiMaster ●SECO Turbo Mill Shoulder Cutter ●Compatible inserts: XO..06... ●Turbo 06 - R217/220.69-06 One meter specification
