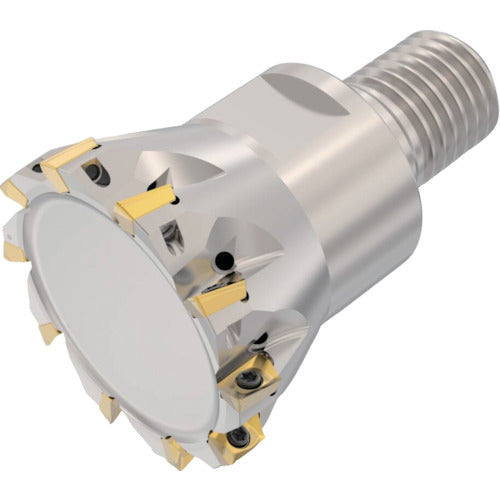

Seco Milling Turbo Mill Cutter R217.69-1640.RE-06-10AN 1 piece

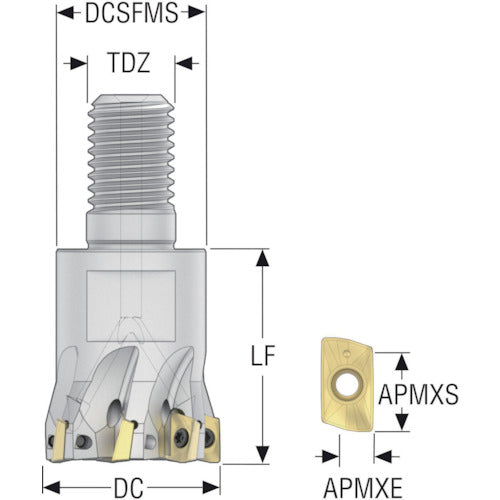

Catalog number: R217.69-1640.RE-06-10AN Features: ●This is SECO's representative shoulder cutter, the Turbo Mill. ●This highly versatile Turbo Mill is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing heat generation and cutting force provide long tool life and high precision. ●This shoulder cutter has two corners and can also be used for 3D processing. There are a wide variety of combinations of nose R settings, cutting edge treatments and material types. ●The Turbo series can maximize the efficiency of square shoulder processing. ●This highly versatile cutter is suitable for most rough, semi-finishing and finishing processes, and its optimized characteristics of reducing cutting heat and cutting force provide long tool life and high precision. Specifications: ●APMXS(mm):5.0●DC(mm):40.0●DCB(mm):-●DCSFMS(mm):28.0●LF(mm):40.0●Insert:XO.X06..●APMXE(mm):3.0●Cmax(mm):79.0●Cmin(mm):74.5●KAPRS°:90●RMPX°:1.0●RPMX:28000●TDZ:M16●ZEFP:10●Mounting shape:CombiMaster●SECO Turbo Mill Shoulder Cutter●Compatible inserts:XO..06…●Turbo 06 - R217/220.69−06 One meter specification
