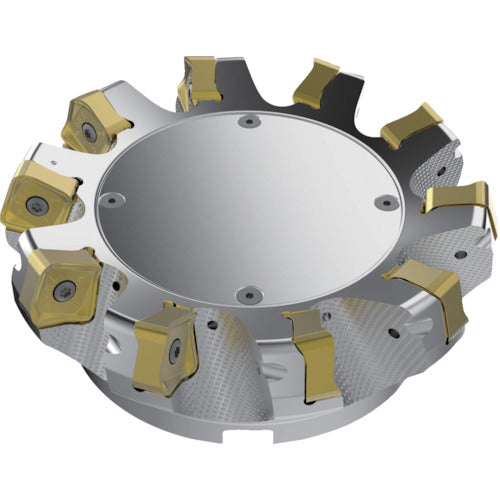

Seco Milling Double Quattro Mill R220.56-22 R220.56-8160-22-10A 1 piece

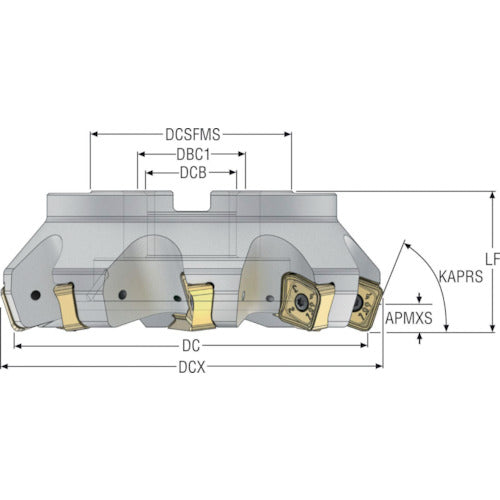

Catalog number: R220.56-8160-22-10A Features: ●The body is designed using special steel material, making it a cutter with high rigidity and low resistance even at high cutting depths. ●The industry's largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. ●The maximum cutting depth can be selected with two types of cutting angles. ●The Seco Tools Double Quattro MillTM Face Mill Cutter is suitable for roughing and semi-finishing, making the most of the milling capabilities of machine tools to increase productivity. ●The largest cutting depth is achieved in a cost-effective manner using an insert with 8 cutting edges. Specifications: ●APMXS(mm):13.0●BD(mm):-●DBC1(mm):66.7●DC(mm):160.0●DCB(mm):40.0●DCSFMS(mm):90.0●DCX(mm):171.5●KAPRS(deg):71.0●LF(mm):63.0●Insert:SN.X2209ZN●KAPRS°:71.0●RPMX:3300●ZEFP:10●Mounting shape:Arbor●Compatible insert:SN.X2209ZN.R●DC: 160.0mm DCB: 40.0mm DCSFMS: 90.0mm●LF: 63.0mm●APMXS: 13.0mm●ZEFP(number of effective cutting edges): 10●KAPR(cutting edge angle): 71.0°●Shank type: Arbor●DCX: 171.5mm●Double Quattro R220.56-22 One meter specification
