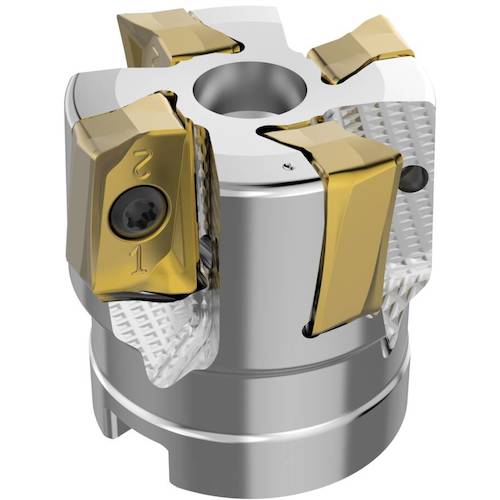

SECO Milling Double Turbo Mill R220.64 Cutter R220.64-0040-ZO16-4A 1 piece

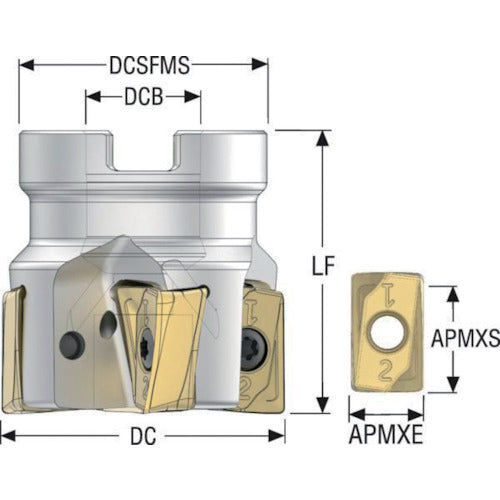

Catalog number: R220.64-0040-ZO16-4A Features: ●Despite the 4-corner specification, it has a helix angle of 11° and a positive shape that is the best in its class, enabling low-resistance, highly efficient side machining. ●The most positive 3D cutting edge shape on the market today reduces power consumption, makes cutting smoother, and extends tool life. ●The combination of excellent 90-degree right-angle accuracy and double-sided inserts improves surface finish and reduces costs. Specifications: ●APMXE(mm):5.0●APMXS(mm):15.0●DBC1(mm):-●DC(mm):40.0●DCB(mm):16.0●DCSFMS(mm):35.0●LF(mm):40.0●Insert:ZOMX16.●Cmax(mm):78.0●Cmin(mm):65.0●RMPX°:0.25●RPMX:10000●ZEFP:4●Mounting shape:Arbor●Compatible insert:ZOMX1607●DC:40.0mm DCB:16.0mm DCSFMS:35.0mm●LF:40.0mm●APMXE:5.0mm APMXS:15.0mm●ZEFP(number of effective cutting edges):4●KAPR(cutting edge angle):90.0°●Shank type:Arbor●Double Turbo 16-R217/220.64-ZO16 1 meter specification
