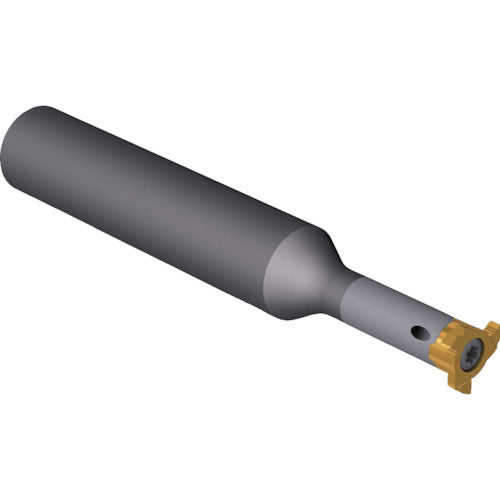

SECO Milling Mini Disc 335.14 Shank 12 Size 335.14-1206.0-021-080-E 1 pc

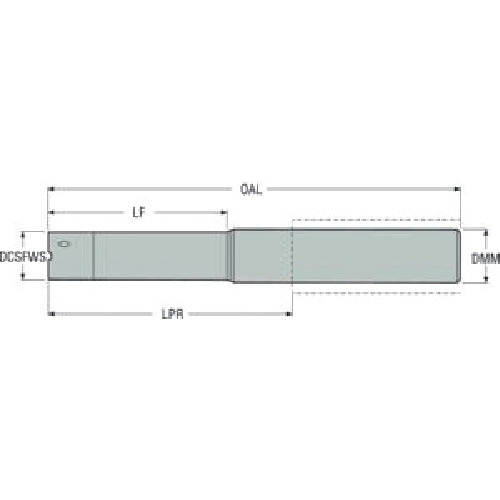

Catalog number: 335.14-1206.0-021-080-E Features: ●Shank for head-replaceable carbide side cutters with diameters of 9.7 mm or more. For small diameter side cutters 335.14, which excel in arc completion and straight groove machining. ●Model number ending in E indicates a carbide shank. ●Small diameter side cutter system dedicated to shallow groove machining, circlip groove machining, upper and lower chamfering, full R shape, and thread cutting Specifications: ●DCSFWS(mm): 6.0 ●DMM(mm): 12.0 ●LF(mm): 17.5 ●LPR(mm): 31.5 ●OAL(mm): 76.5 ●Insert: R335.14...06Z.. ●Coolant through: Yes ●RPMX: 30000 ●Shank type: Cylindrical ●DCSFWS: 6.0mm●DMM: 12.0mm●LF: 17.5mm●OAL: 76.5mm●335．14 Shank - Straight type One meter specification
